Integrated solar street light - YT10
Model: YT10
YT10 all in one solar street light is designed for Home/Garden/Village path way applications. There are two pole ways and wall installations with its different accessories.There are 2 lighting functions, Radar motion sensor and constant time controller with dimming options. More performance and humanized design for your area.

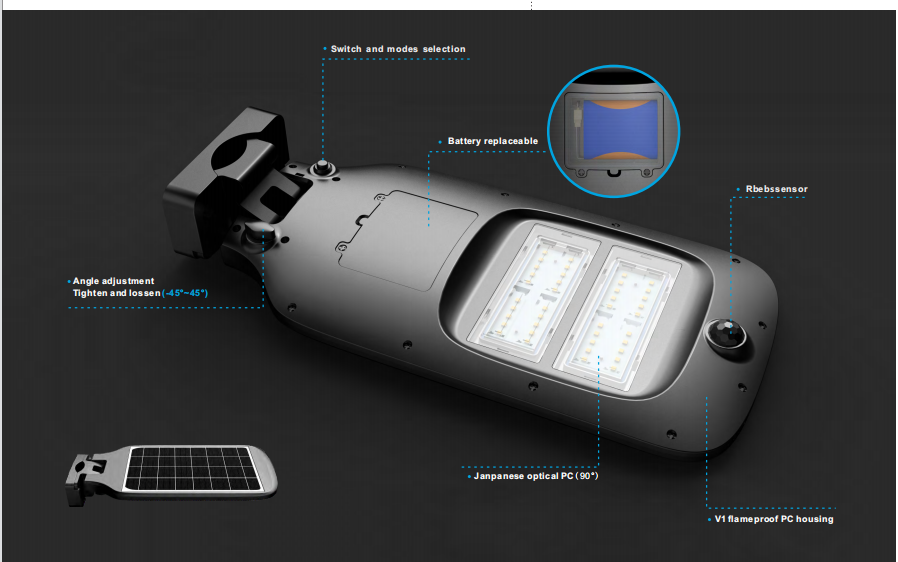

Advantages:

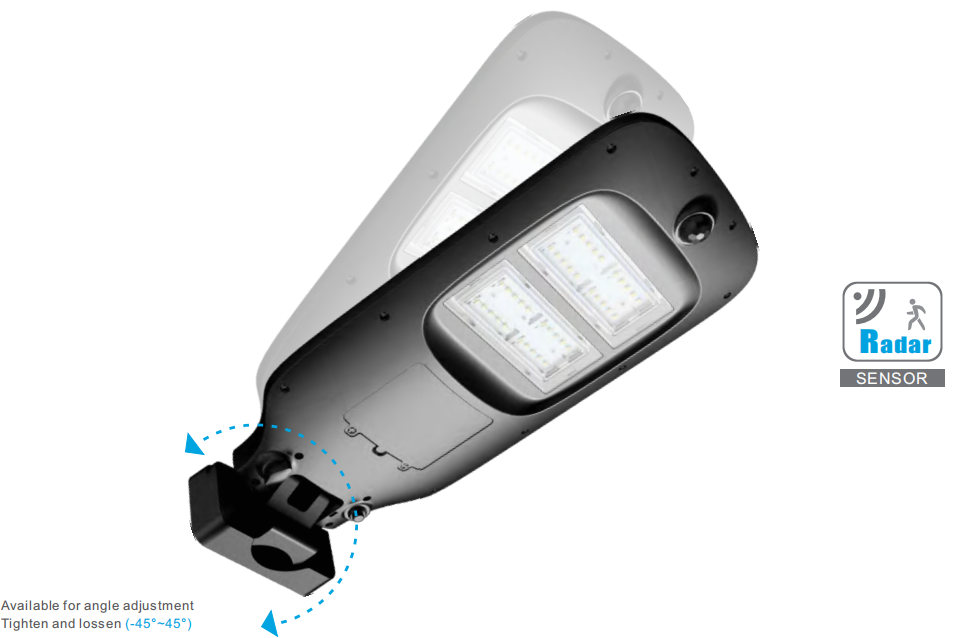

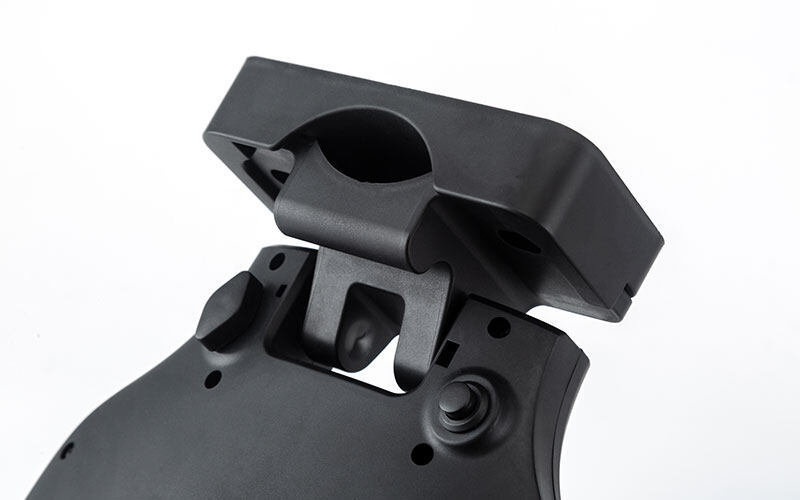

- Available for angle adjustment .Tighten and lossen (-45°~45°)

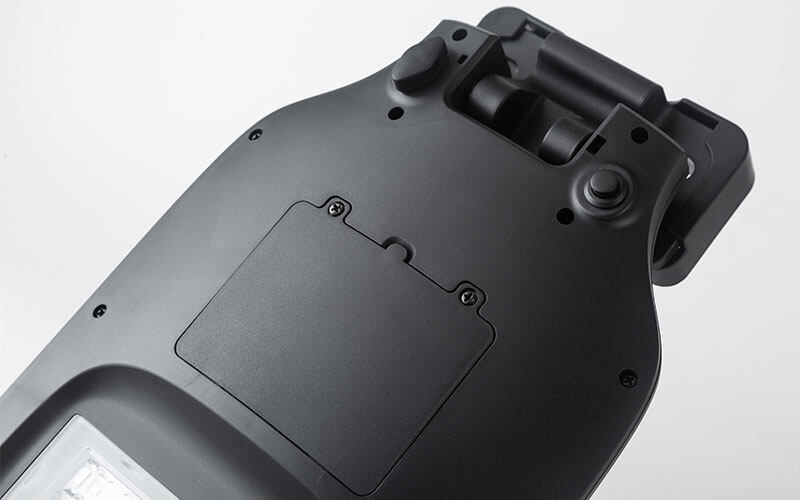

- Lithium battery replaceable, battery terminal wired

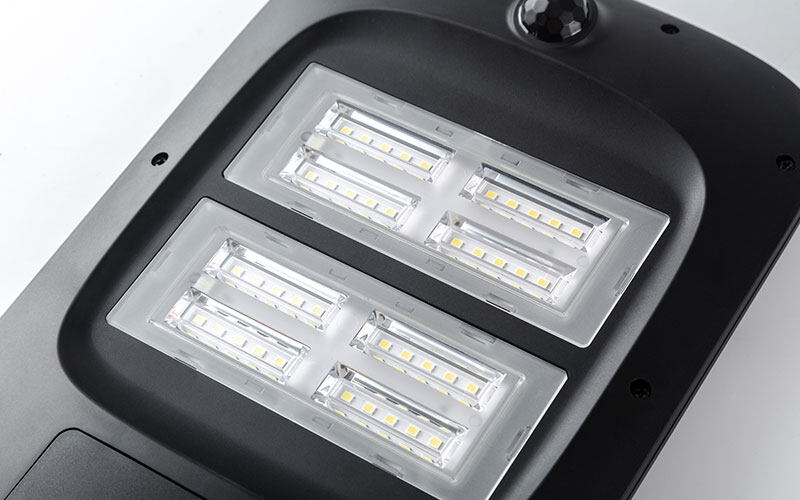

- High lumen output, reach 600lm (Efficiency: 150lm/w),
Techinical Specification:
| Model |
YT10 |
| Solar Panel |
5V 7W Monocrystalline |
| Battery Capacity |
3.7V 6AH Li-ion |
| LED Chips |
SMD2835 |
| Sensor |
Radar Sensor |
| Color Temperature(K) |
3000K/4000K/6000K |
| Real Power & Lumen |
4W 600LM |
| Installation Height |
3-4m |
| Beam Angle |
90°*90° |
| Body Material |
PC, VO anti-fire |
| Raining Days |
2-3 Days |
| IP Rating |
IP54 |
| Mounting Type |
Pole/Wall |
| Charge Time |
4-6Hrs |
| Working Time |
20-24Hrs |
| Finish Color |
Black |
| Warranty |
2years |

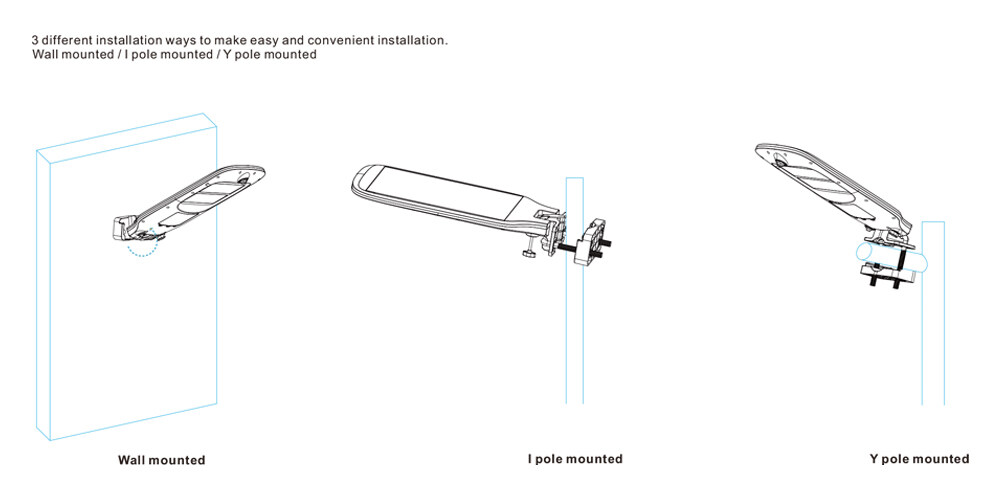

Installation and Function:

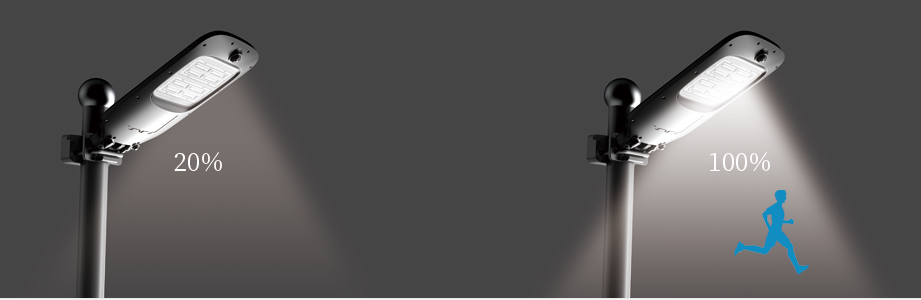

- Radar Sensor: When people comes, the integrated solar street light will light with 100% brightness in 15s. If no people comes, it will light with 20% brightness all the time.

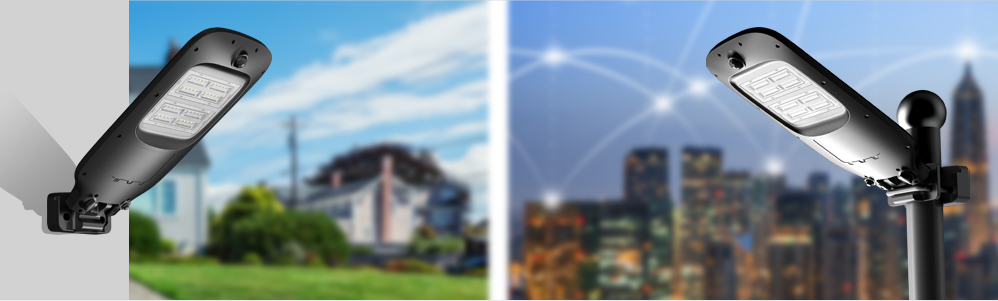

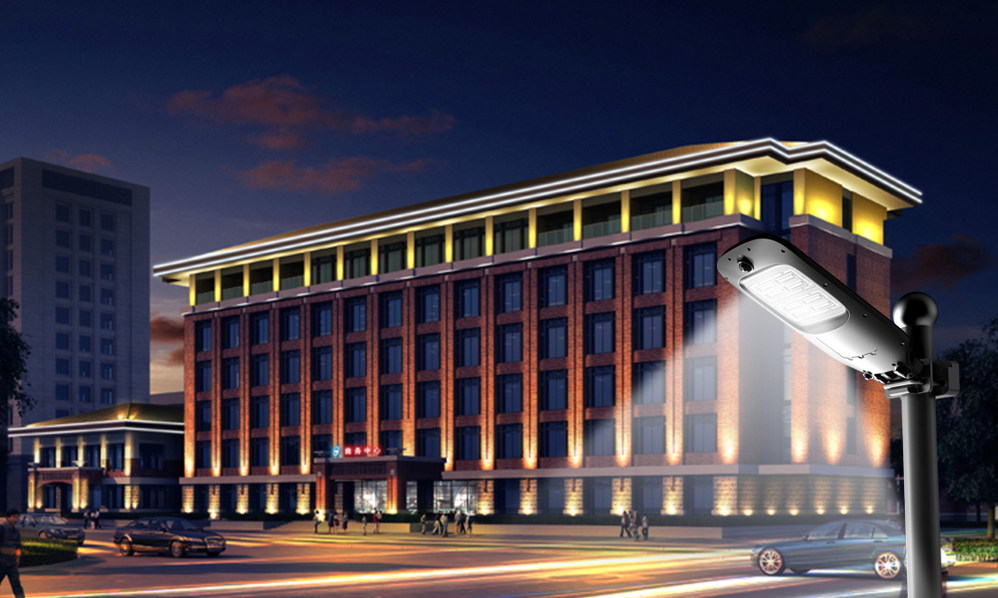

Application:
- Street or Road
- Garden, Yard or Garage

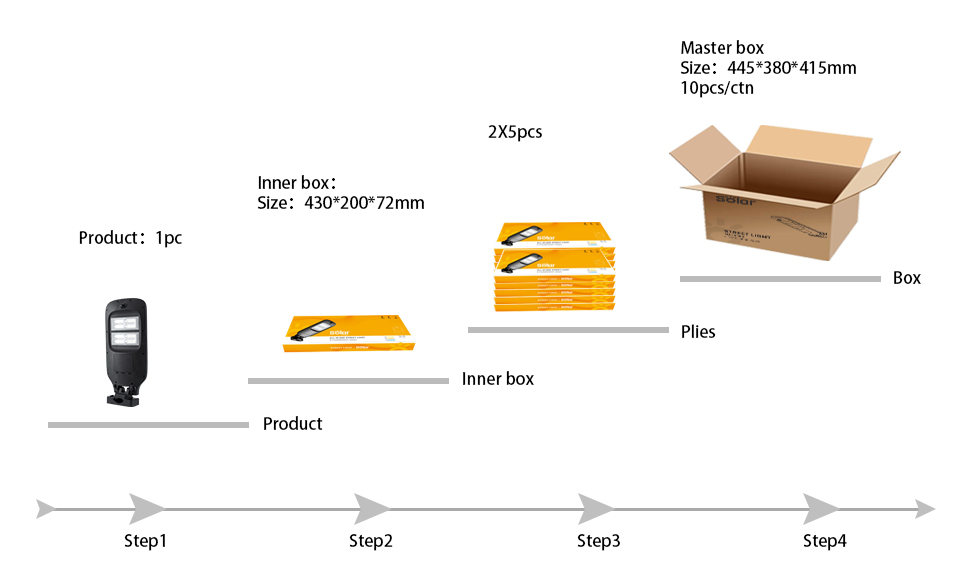

Package：
