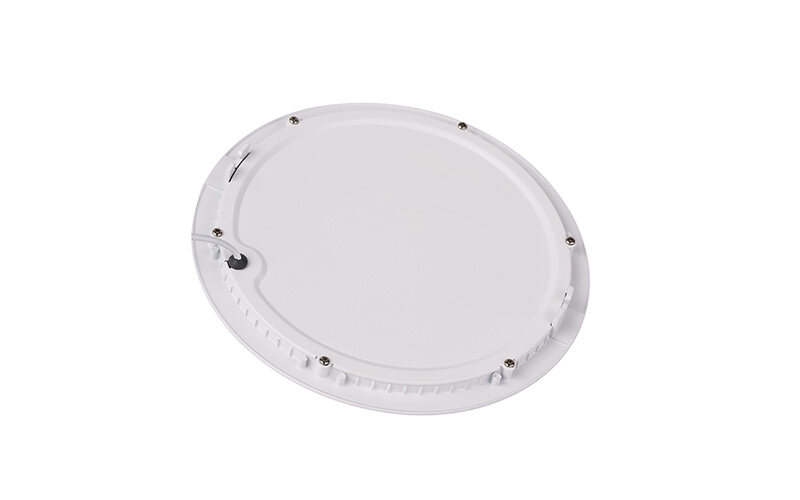

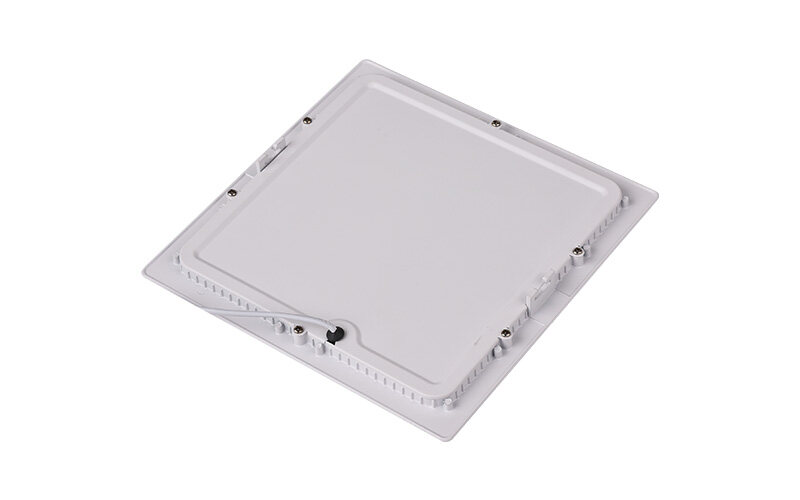

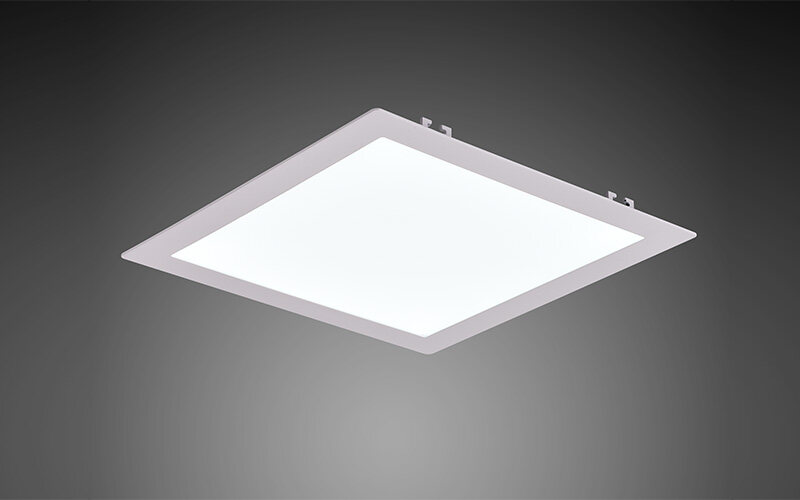

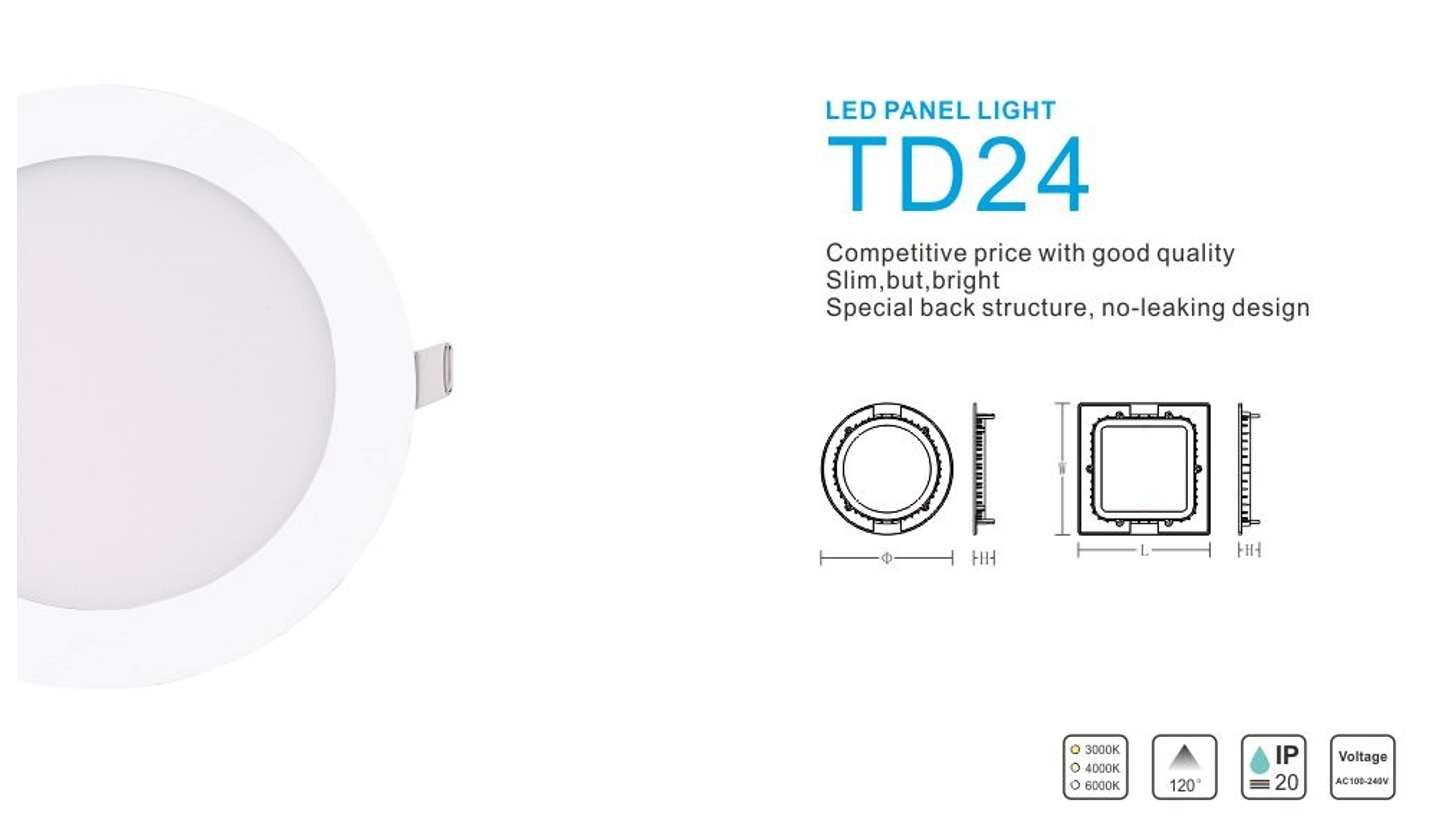

Recessed LED panel light 3w to 24w-TD24

Model: TD24
Energy saving recessed led panel light / low prices round square led from 3w to 24w
Get Pricelist Now!

Product Feature:

1. Embedded energy-saving luminaries, high lumen output
2. Aluminum housing, good heat dissipation
4. No noise, no flicker; no ultraviolet or infrared light beam, mercury-free
5. Advanced constant current driver, professional thermal management

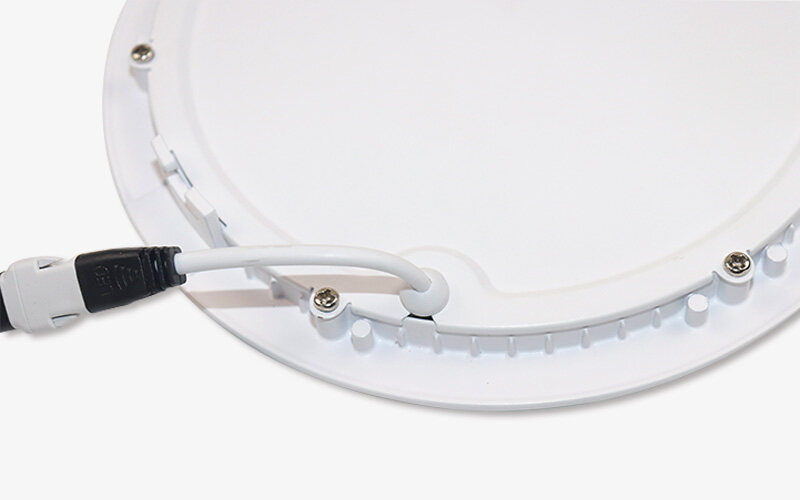

recessed slim led panel light

Techinical Specification:

 Item No. Watt Lumen Voltage CRI PF Size(mm) Die-cut(mm)
TD24-3WY 3W 133LM AC100-240V 70 0.5 φ83*21 φ70
TD24-6WY 6W 291LM AC100-240V 70 0.5 φ119.5*21 φ105
TD24-9WY 9W 540LM AC100-240V 70 0.5 φ146.5*21 φ135
TD24-12WY 12W 669LM AC100-240V 70 0.5 φ168.5*21 φ155
TD24-15WY 15W 932LM AC100-240V 70 0.5 φ189.5*21 φ175
TD24-18WY 18W 1204LM AC100-240V 70 0.5 φ220*21 φ205
TD24-24WY 24W 1546LM AC100-240V 70 0.5 φ296.5*21 φ280
TD24-3WF 3W 138LM AC100-240V 70 0.5 84*84*21 72*72
TD24-6WF 6W 259LM AC100-240V 70 0.5 118*118*21 105*105
TD24-9WF 9W 478LM AC100-240V 70 0.5 148.5*148.5*21 135*135
TD24-12WF 12W 669LM AC100-240V 70 0.5 167*167*21 155*155
TD24-15WF 15W 978LM AC100-240V 70 0.5 188.5*188.5*21 175*175
TD24-18WF 18W 1200LM AC100-240V 70 0.5 219.5*219.5*21 205*205
TD24-24WF 24W 1536LM AC100-240V 70 0.5 295*295*21 280*280

led light panel mount





led panel light manufacturer

led light panel for ceiling

led panel light 18w

led panel light supplier

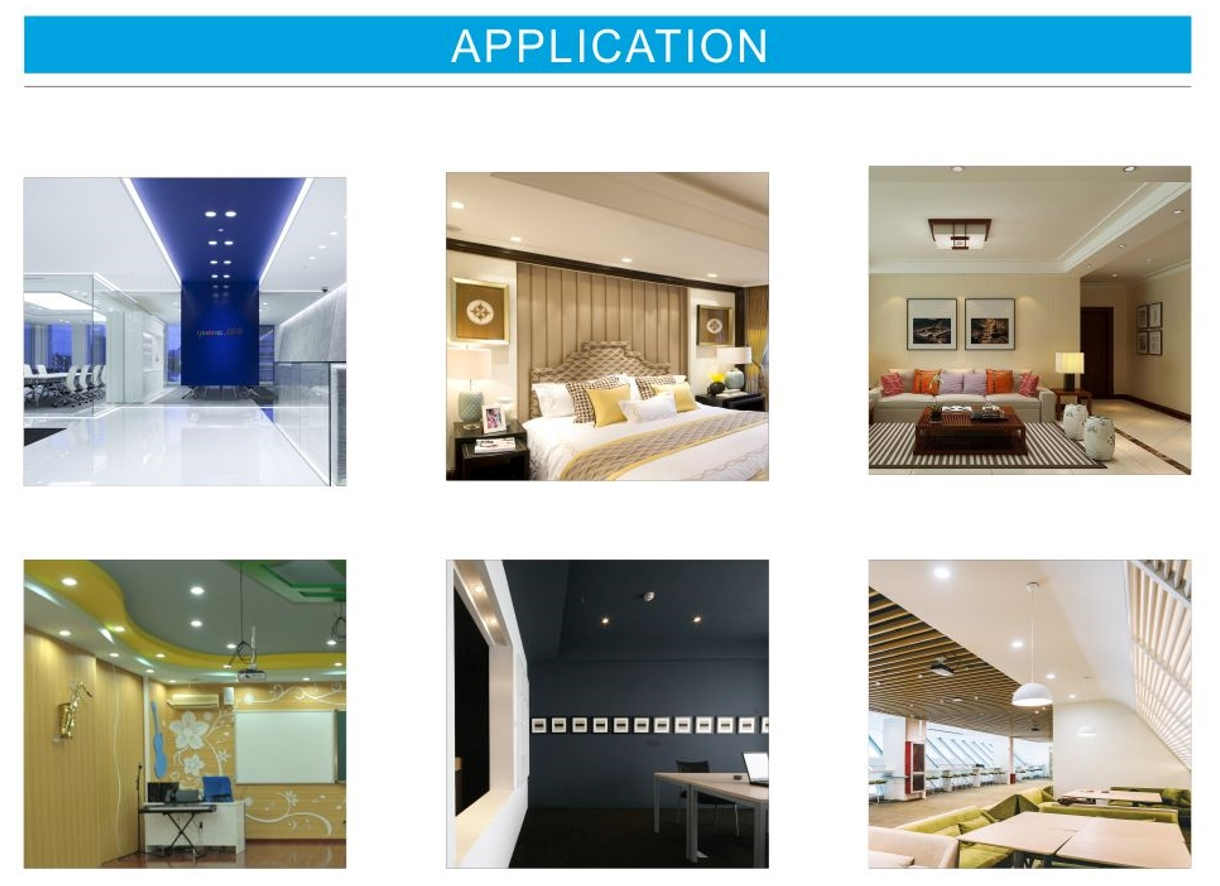

Application area: Office, Home, Hospital, Museum, Hall etc.

led light panels for backlighting

18 watt led panel light price
