Product Feature:
1. Surface energy-saving luminaries, high lumen
2. Aluminum housing, good heat dissipation
3. Rimless design, backlight output
4. Advanced constant current driver, professional thermal management
Techinical Specification:
| Item No. | Watt | Lumen | Voltage | CRI | PF | Size(mm) |
| TD30A-16WY | 16W | 90LM/W | AC100-240V | 80 | 0.5 | φ120*H40 |
| TD30A-24WY | 24W | 90LM/W | AC100-240V | 80 | 0.5 | φ175*H40 |
| TD30A-32WY | 32W | 90LM/W | AC100-240V | 80 | 0.9 | φ225*H40 |
| TD30A-40WY | 40W | 90LM/W | AC100-240V | 80 | 0.9 | φ300*H40 |
| TD30A-16WF | 16W | 90LM/W | AC100-240V | 80 | 0.5 | 120*120*H40 |
| TD30A-24WF | 24W | 90LM/W | AC100-240V | 80 | 0.5 | 175*175*H40 |
| TD30A-32WF | 32W | 90LM/W | AC100-240V | 80 | 0.9 | 225*225*H40 |
| TD30A-40WF | 40W | 90LM/W | AC100-240V | 80 | 0.9 | 300*300*H40 |

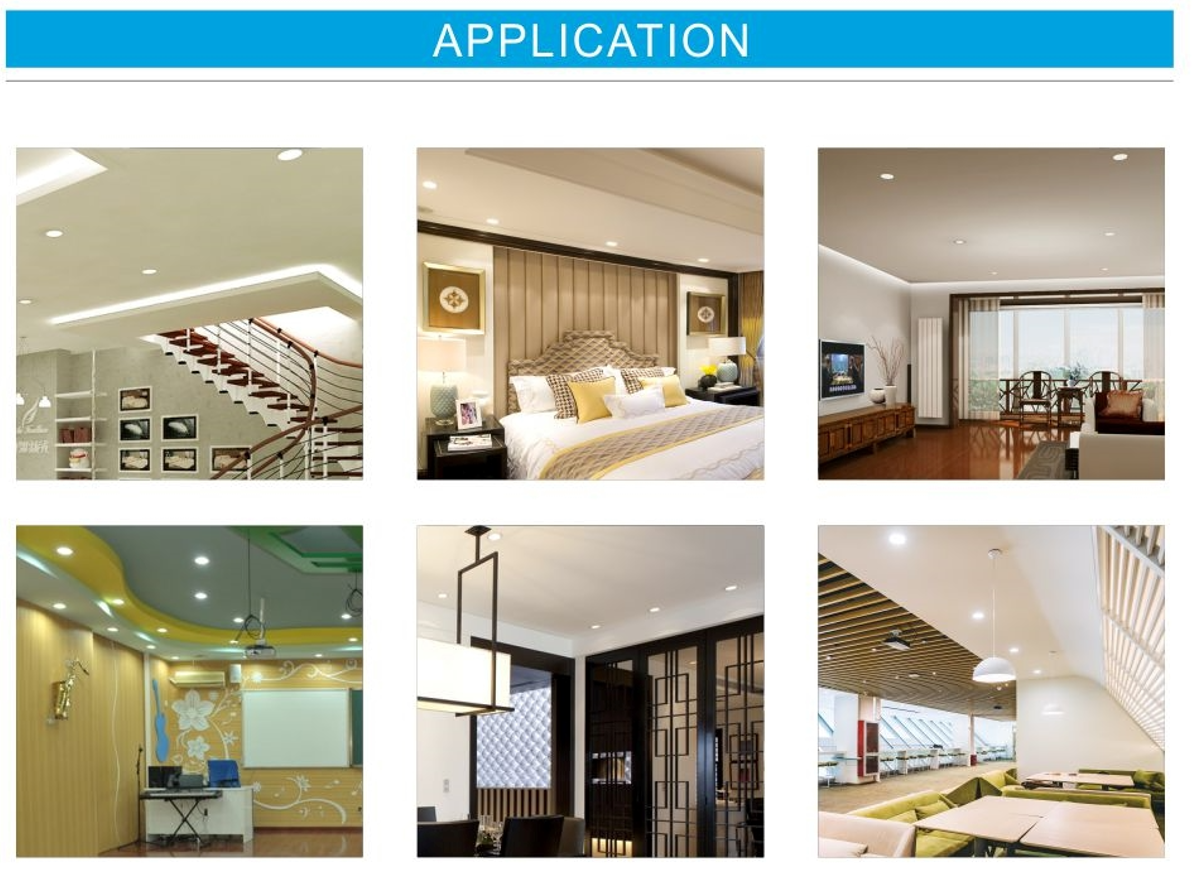

Application area: LED light panel for ceiling is suitable for Office, Home, Hospital, Museum, Hall etc.
